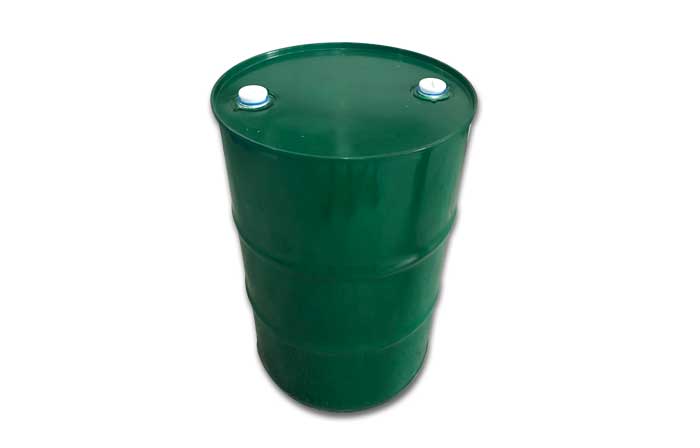

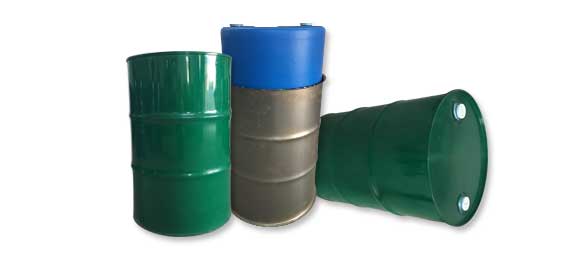

Composite Barrels

Composite Barrels

These barrels are manufactured from CRCA Coil/ Sheet for outside Body and for inside HMHDPE liner is provided having capacity 200 ltrs..These barrels are used for export purpose and safe transportation of high value hazardous material. The inner is a blow moulded plastic container made from high-density polyethylene to suit your requirements and this is surrounded by a strong outer shell of steel providing unrivalled protection. Internal strength is provided by Plastic Container and mechanical strength is provided by the outer steel container. The plastic lining is perfect for liquids that are incompatible with steel.

We manufacture a wide range of high quality composite barrels which is made in customized sizes to meet the specific requirements of our clients. These composite barrels are fabricated, depending on the material to be packed. We offer them at an affordable rates to our clients spread all across the globe."

Application Areas

  • Aromatics
  • Agro Chemicals
  • Fertilizers
  • Inflammable Liquids

Technical Specifications

  • Capacity               :200/210 ltrs
  • Sheet
    Thickness
    :CRCA SHEET 1.0 mm – 1.6 mm
  • MAX.HEIGHT    :888 +/- 2 mm
  • MAX.OUTER
    DIAMETER
    :585+/- 2 mm
  • Weight                   :Weight shall vary as per
                                       Thickness of Sheet.
  • Liner                       :HMDPE liner of White/ Blue
                                      Color with 3.5 Kg Weight.

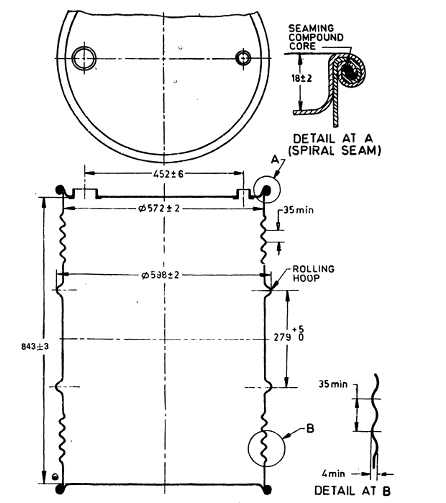

DIMENSION

Composite Barrels
