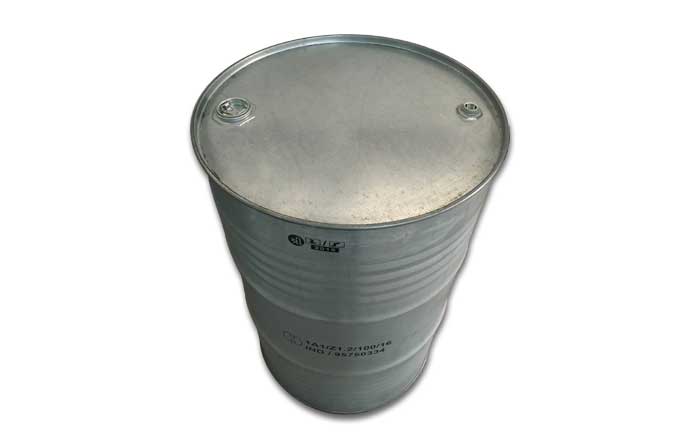

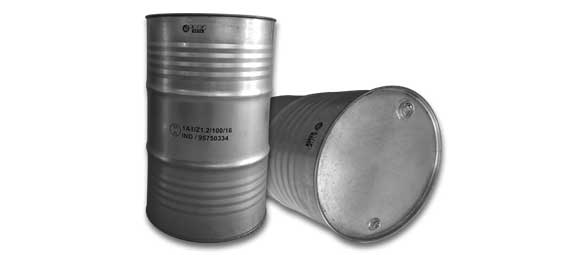

Our company has specialized in the sphere of manufacturing an exclusive range of Galvanized Barrels from GP Sheet with zinc coating of 90 GSM to 200 GSM to our clients that meet their varied and diverse packaging requirements. Barrels are manufactured as per IS Standards.

Application Areas

  • Drug Intermediaries
  • Hazardous Chemicals

Technical Specifications

  • Capacity            :210 to 235 liters
  • Sheet
    Thickness
    :1.00 mm / 1.2mm and 1.5 mm
                                   GP Sheet - 07 to 10 micron-
  • MAX.HEIGHT :888 +/- 2 mm
  • MAX.OUTER
    DIAMETER
    :585+/- 2 mm
  • Weight               :Weight will vary as per
                                    Thickness of Sheet.
  • Paint                   :Synthetic Enamel or PU based
                                   color as required.

DIMENSION
